Box Profile Sheets

Box Profile Sheets

All Box Profile sheets are made to order, there is no maximum or minium size in which we can roll. Each sheet is a metre coverage which includes the overlap. For example 5 sheets will cover 5 metres ETC.

Each sheet is Galvanised and Painted Which in turn gives it a long life span. The tin is ideal for industrial, agricultural, commercial and domestic roofing and cladding.

Colour Coatings

• Green
• Black
• White

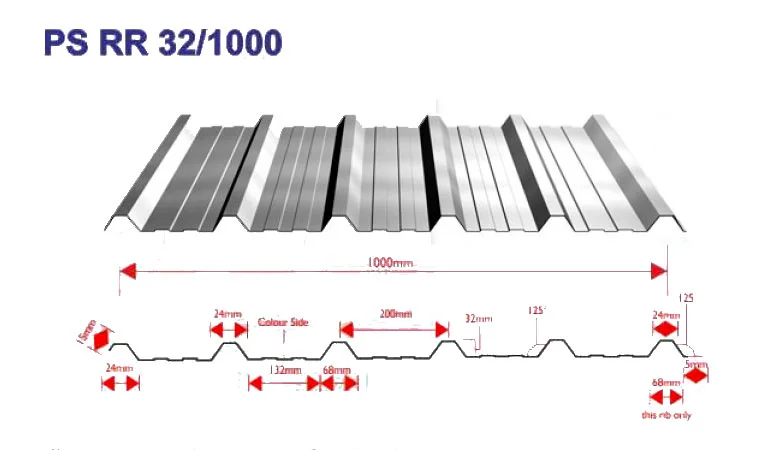

Specifications

• Application: Wall or Roof (Vertical & Horizontal)
• External Finish: Painted
• Internal Finish: Grey Painted
• Profile height : 24mm pitch
• Ridge space : 210 mm
• Standard Width: 1110 & 1000mm when lapped
• Gauge Thickness: 0.5mm and 0.7mm
